USB Vibration Datalogger



Rental Rate:$49/week

USB Vibration Datalogger

SKU: DT-178A
C$259.00Price
  • USB Vibration Datalogger, 4 Mb USB, Shock Acceleration Data Logger



    Order No.DT-178A

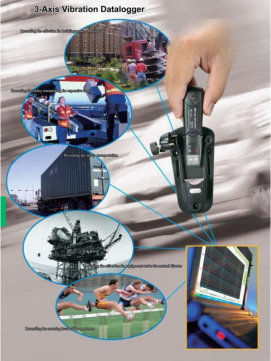

    This is a brand new DT-178A 3-axis vibration datalogger. This device records shocks and vibration on all three axis (X, Y, Z). The data is stored in the built-in 4 Mb flash memory ready for uploading to a computer later. This device uses the USB interface to ensure compatibility with your Windows PC.

    The DT-178A is engineered to record acceleration data of vibration. It records and time 3-axis vibrations with peaks to provide a history of shock and vibration conditions. It also records the time when freefall happens. It measures and computes real-time spectral data using an FFT (Fast Fourier Transform) from 0 to 60 Hz.

    This device is compact and portable. It comes with Windows software and battery.



    Features

    • Records 3-axis shock
    • Comes with built-in accelerometers
    • Measures dynamic and static acceleration
    • Comes with freefall detection mode
    • Designed to handle real time operation and FFT
    • Includes user settable trigger level
    • Comes with high speed USB 2.0 interface


    Specifications

    • Acceleration sensor: MEMS semiconductor

    • Acceleration sensor sampling rate: 200 Hz

    • Acceleration range: +/- 18G

    • Acceleration resolution: +/- 0.00625G

    • Acceleration accuracy: +/- 0.5G

    • non-linearity: +/- 1%

    • Bandwidth: about 0 ~ 60 Hz

    • Trigger range: 0 to 18G (XYZ magnitude)

    • Sampling rate: 1 second to 24 hours

    • Memory: 4Mbit flash, (85764 total samples or 28588 samples per X, Y, Z axis)

    • Battery: 3.6V Lithium battery (NOT included)

    • Size: 130mm x 30mm x 25mm

    • Weight: about 20g

    • Software compatibility: Windows 2000, Windows XP, Vista, Vista-64bit, Windows 7, Windows 7-64bit



    Standard Delivery

    • DT-178A main unit
    • 1 light disk
